FV-420 320 foot pedal valve
G1/4 3/2 way normally closed pneumatici foot pedal valve FV-320 FV-420
Order code
Symbol
Technical parameter
Model No
FV320
FV420
Fluid
Air
Acting
Direct acting type
Port size
06:G1/8”
08:G1/4”
Valve type
3/2 way
4/2 way
Pressure range
0-0.8MPa
Temperature
-5℃~60℃
Lubrication
No required

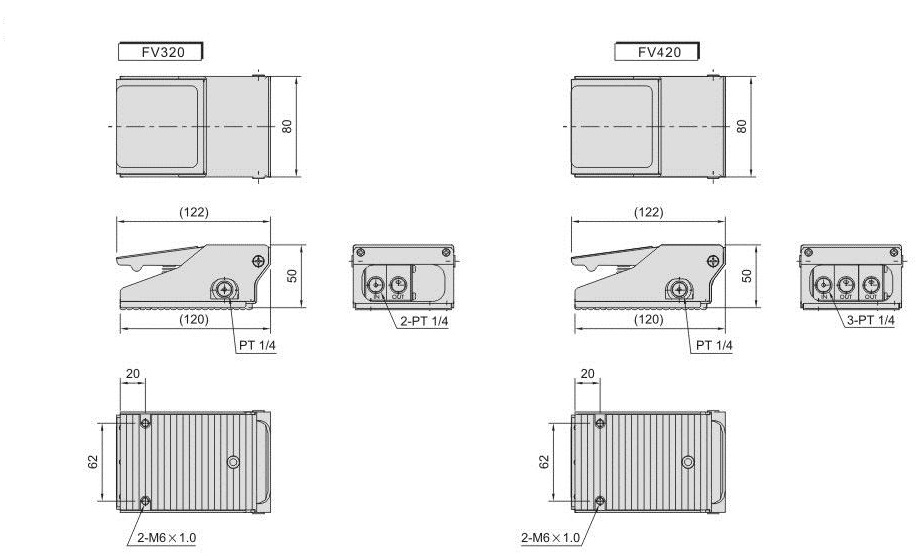

Dimension
Feature
FV320 FV420 foot pedal valve is ideally suited to control spring or loaded return pneumatic cylinders allowing pressurized extension and vented retraction or single-directional pneumatic motors allowing control only in a single direction
FV320 can simply control the air source unit on or off
FV420 foot switches could be used in a range of gas control products, such as automotive and automation equipment, without the need to pass electricity.
